The basic principles of high voltage transformers, from a protection & control perspective.

Upon completion participants will be familiar with:

  • Electromagnetism, Voltage & Current Transformation
  • Ratios and Polarity
  • Potential Transformers & Current Transformers
  • Saturation
  • 3 Phase Transformers
  • Core Construction
  • Transformer Classifications, Losses & Cooling
  • Per Unit
  • 3rd Harmonic Currents & Tertiary Windings
  • The Buchholz Relay
  • Oil Analysis



  • Transformer Connections:

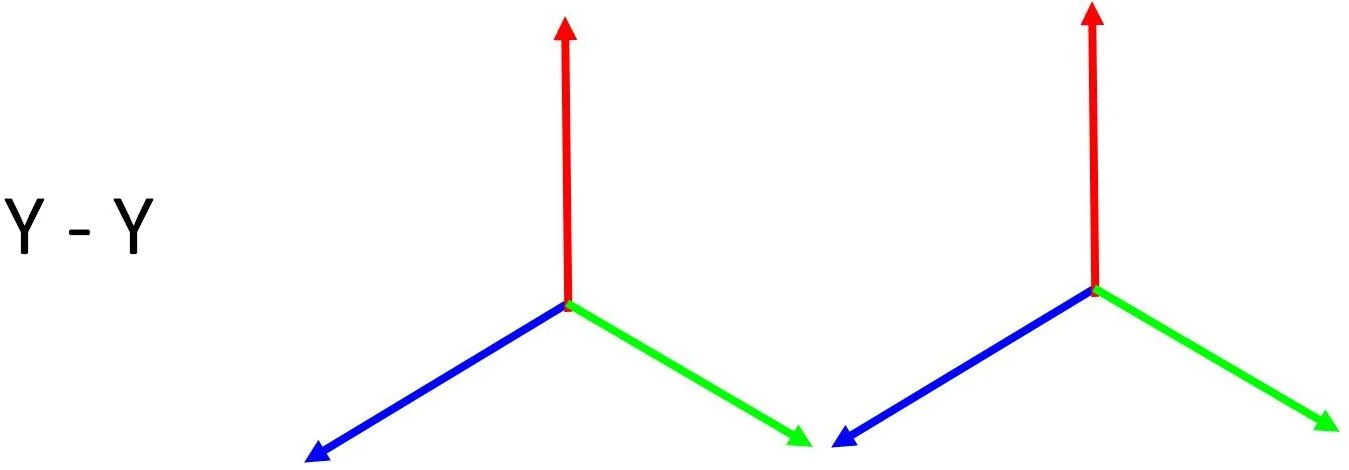

    • Y – Y
    • Delta - Delta
    • Y - Delta
    • Y - Zig-Zag
  • Transformer Over-Current Protection
  • Transformer Differential Protection:
    • The GE Multilin SR 745
    • The Siemens 7UT513
    • The MiCOM P632

Electromagnetic forces interact with electrically charged particles and electromagnetic fields; this module will study how these forces lead to voltage & current transformation.

Ratios and polarity is also studied leading to the introduction of potential transformers & current transformers, and their use in conjunction with the relevant instruments such as ammeters, voltmeters, watt meters and energy meters.

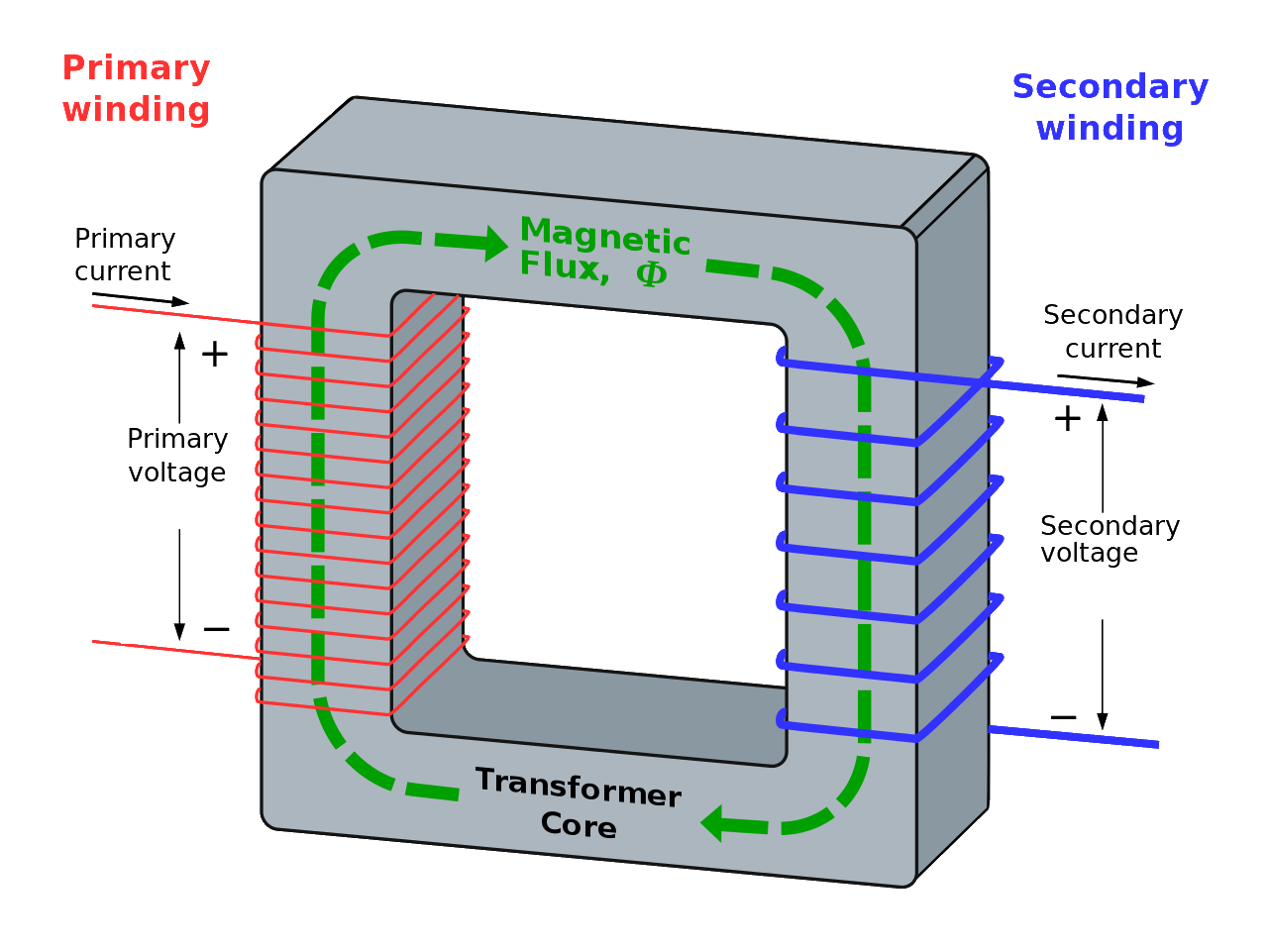

Ideal Trans.png

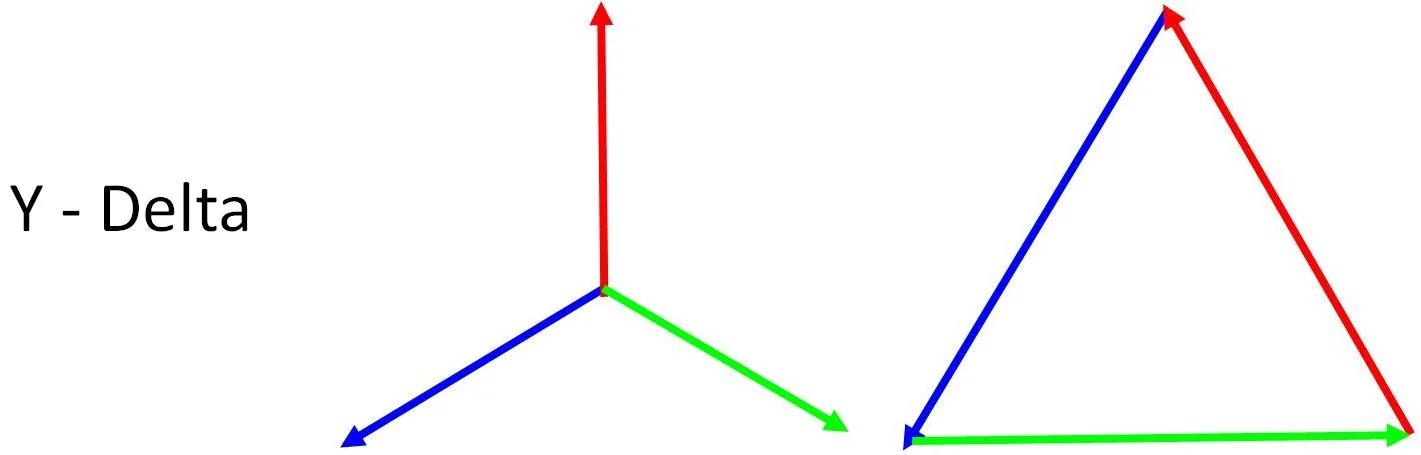

Y-Delta copy.jpg

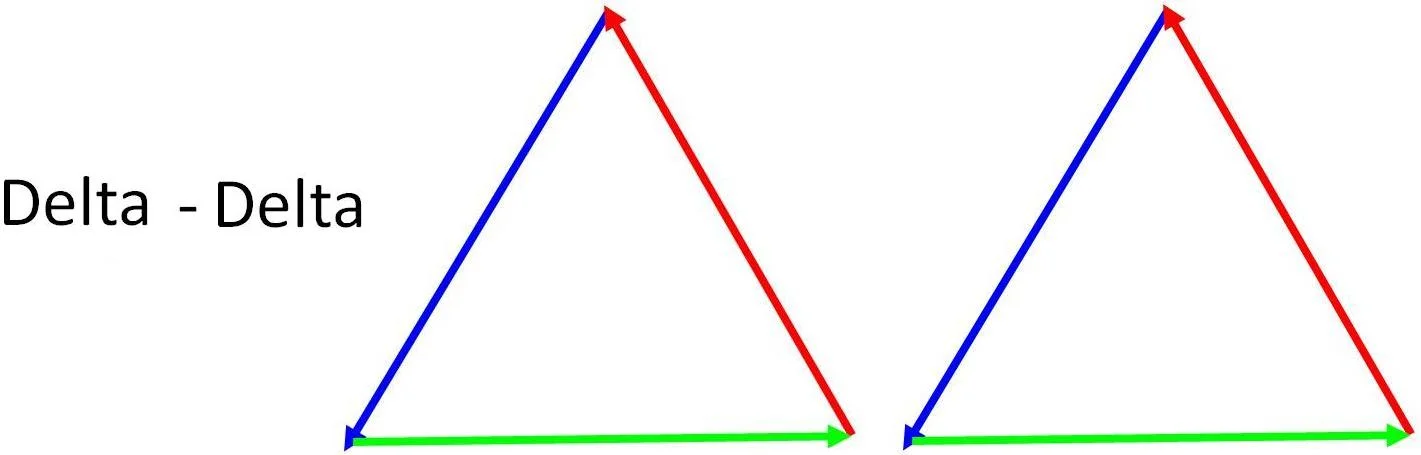

Delta - Delta.jpg

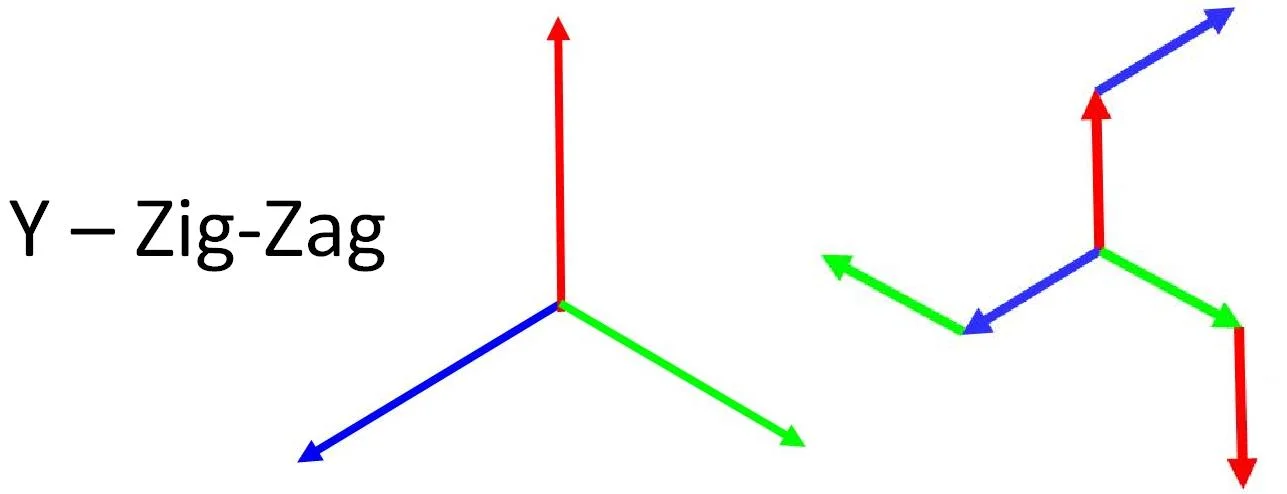

Y-ZZ copy.jpg

Transformer core construction along with losses & cooling mitigation techniques. 3 phase transformer configurations are studied along with harmonic distortion, CT saturation and on-load tap-changer problems and how these problems are dealt with. Over-current and restraint differential transformer protection is developed along with a look at some examples of modern IDE (intelligent Electrical Devices) relays.




Delta – Zig-Zag.jpg


Transformer oil is used to cool and insulate the internal components of transformers. Because it bathes every internal component, the oil contains a great deal of diagnostic information. Just as a blood test provides a doctor with a wealth of information about the health of a patient, a sample of transformer oil can tell a great deal about the condition of a transformer. Insulating materials within transformers and electrical equipment break down to liberate gases within the unit. The distribution of these gases can be related to the  type of electrical fault, and the rate of gas generation can indicate the severity of the fault. The identity of the gases being generated by a particular unit can be very useful information in any preventative maintenance program.



Oil Jars.jpg

This course can be delivered in two ways:

1) In-person with live instructor. This would take one day along with working examples.

2) On-line video training which is presently under development soon to be available...
